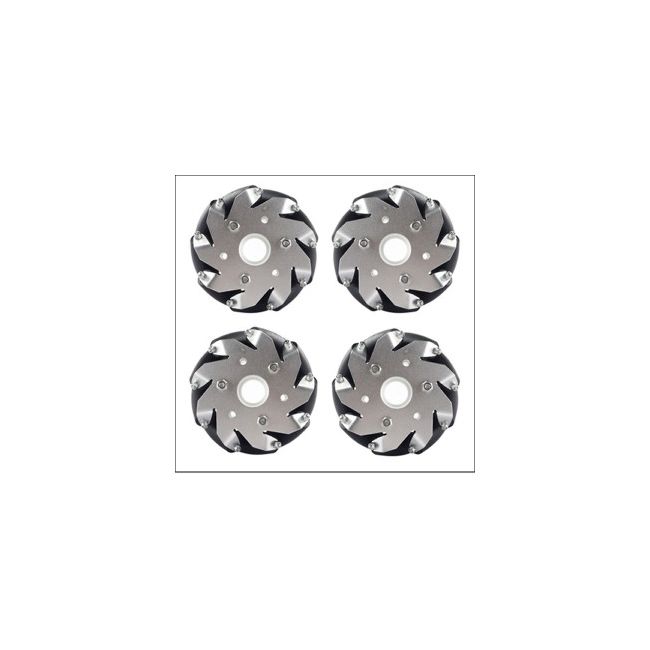

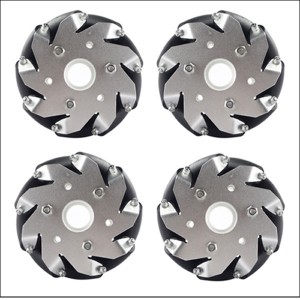

100mm Aluminum Mecanum Wheels Set Basic ( 2 Left, 2 Right) - 14162

The set of 100mm (4 inch)Mecanum wheel includes 2 right wheels and 2 left wheels. Each wheel is comprised of 9 rollers. It is driven independently. Mecanum wheel can be capable of moving in any direction,no need to change the directions the wheel spin. Every of the four wheels contain a series of rollers which have an axis of rotation at 45° to the plane of the wheel in a plane parallel to the axis of rotation of the wheel attached to its circumference.

Kenmerken
• Number of wheels:4
• Diameter of each wheel:4 inches(100mm)
• Width of each wheel:50m
• Number of Rollers each wheel:9
• Number of Plates each wheel:2
• Body material: Aluminum Alloy
• Roller material: PP+PE Spacer
• Material: Nylon
• Length of roller:19mm
• Net weight:400g X 4

Compatible Hubs
• 6mm Hub 18007
• 8mm Hub 18008
• 10mm Hub 18009
• 12mm Hub 18010
• 16mm Hub 18012
• 12mm Key Hub 18017
